Wireless Tracker GPS GSM Bds Positioning Ways Anti Theft Real Time Tracking Mini Asset GPS Tracker Satellite Tracking Device for Cars

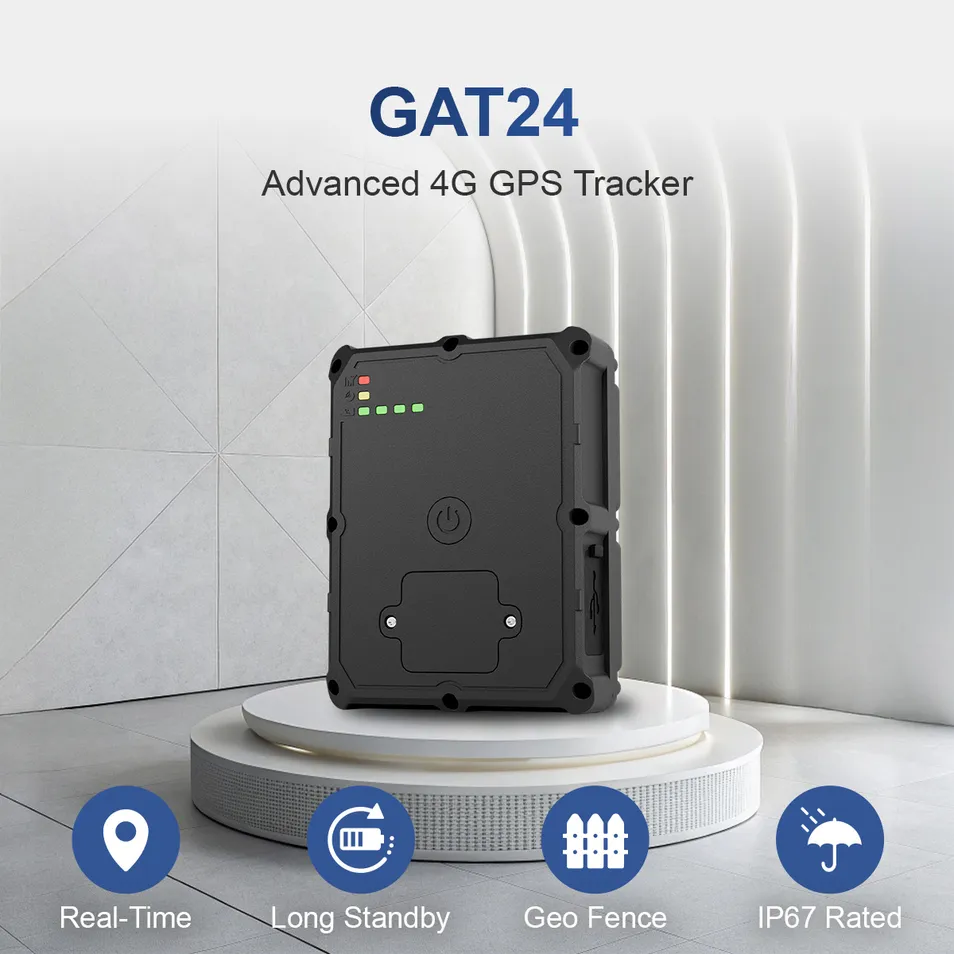

GAT24 None Installation Universal Vehicle GPS

Strong Magnetic GPS Rastreador With 7500mAh Long Standby Battery Life

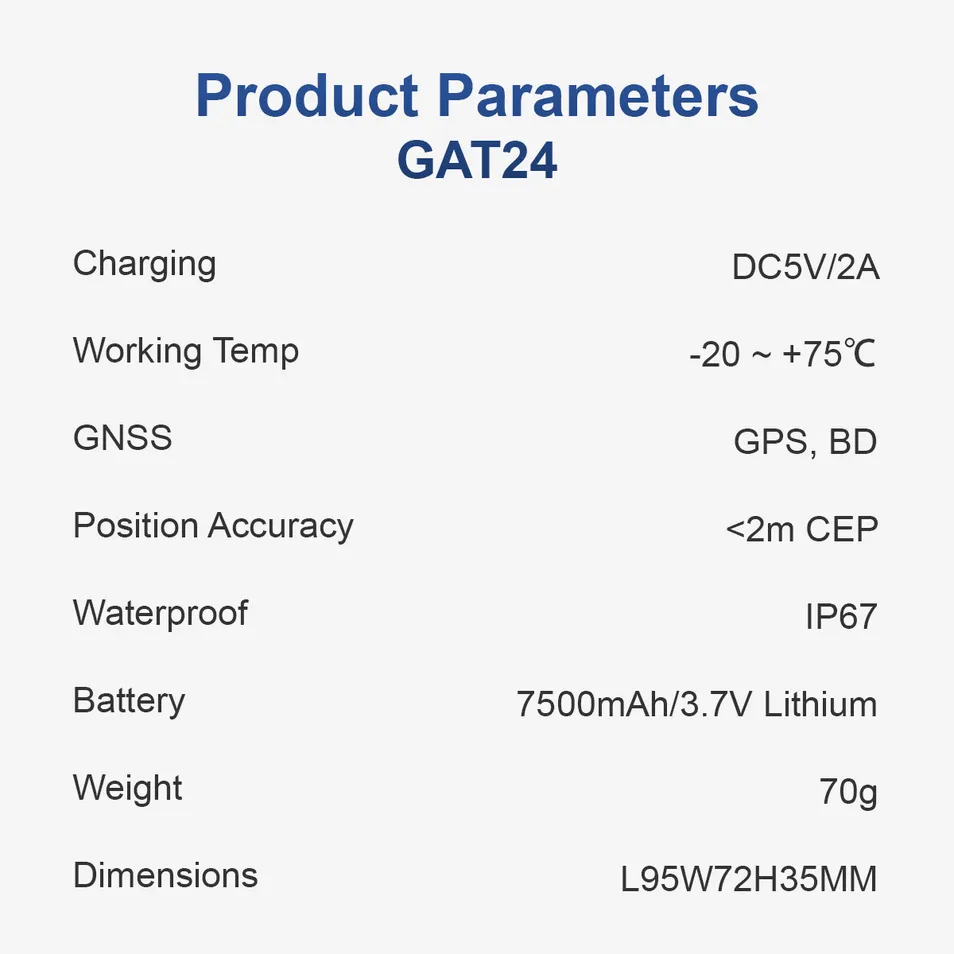

📋 Basic Information

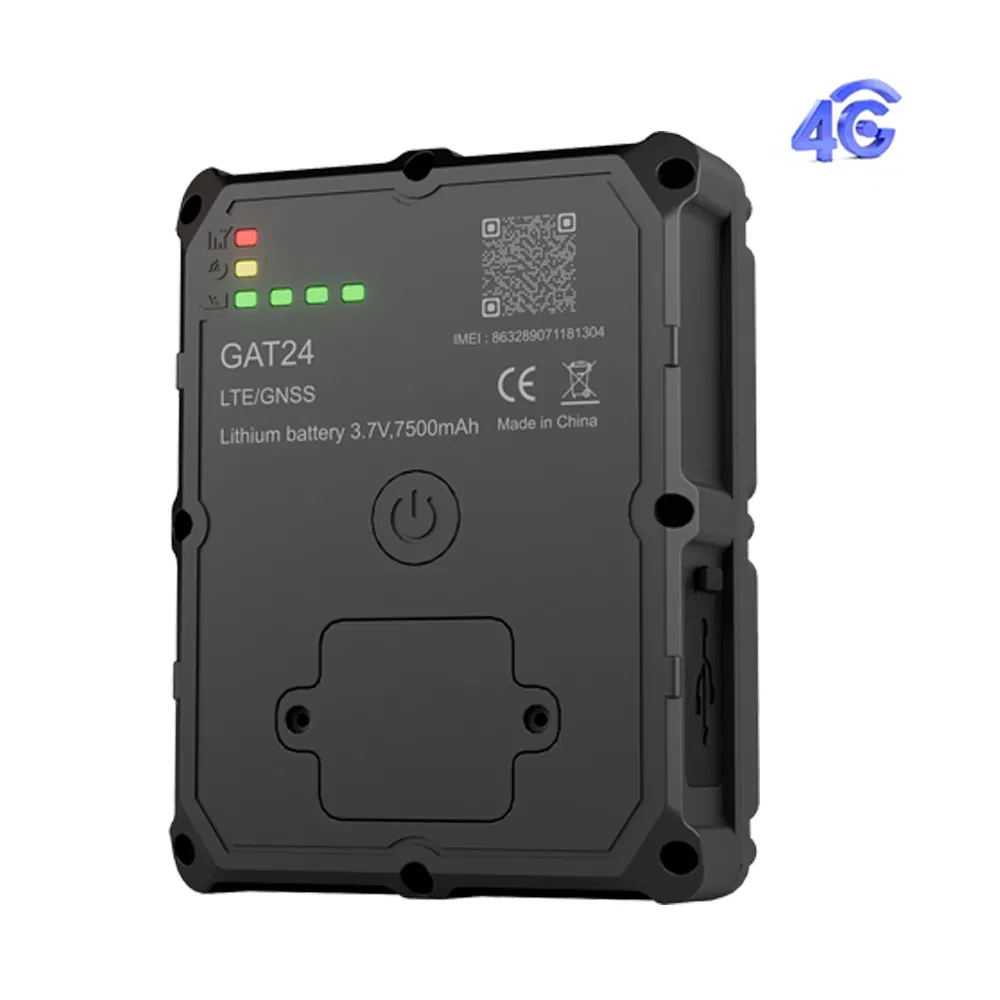

Model NO.	GAT24
Certification	RoHS, ISO/TS16949, ISO14001, ISO2000, FCC, CE

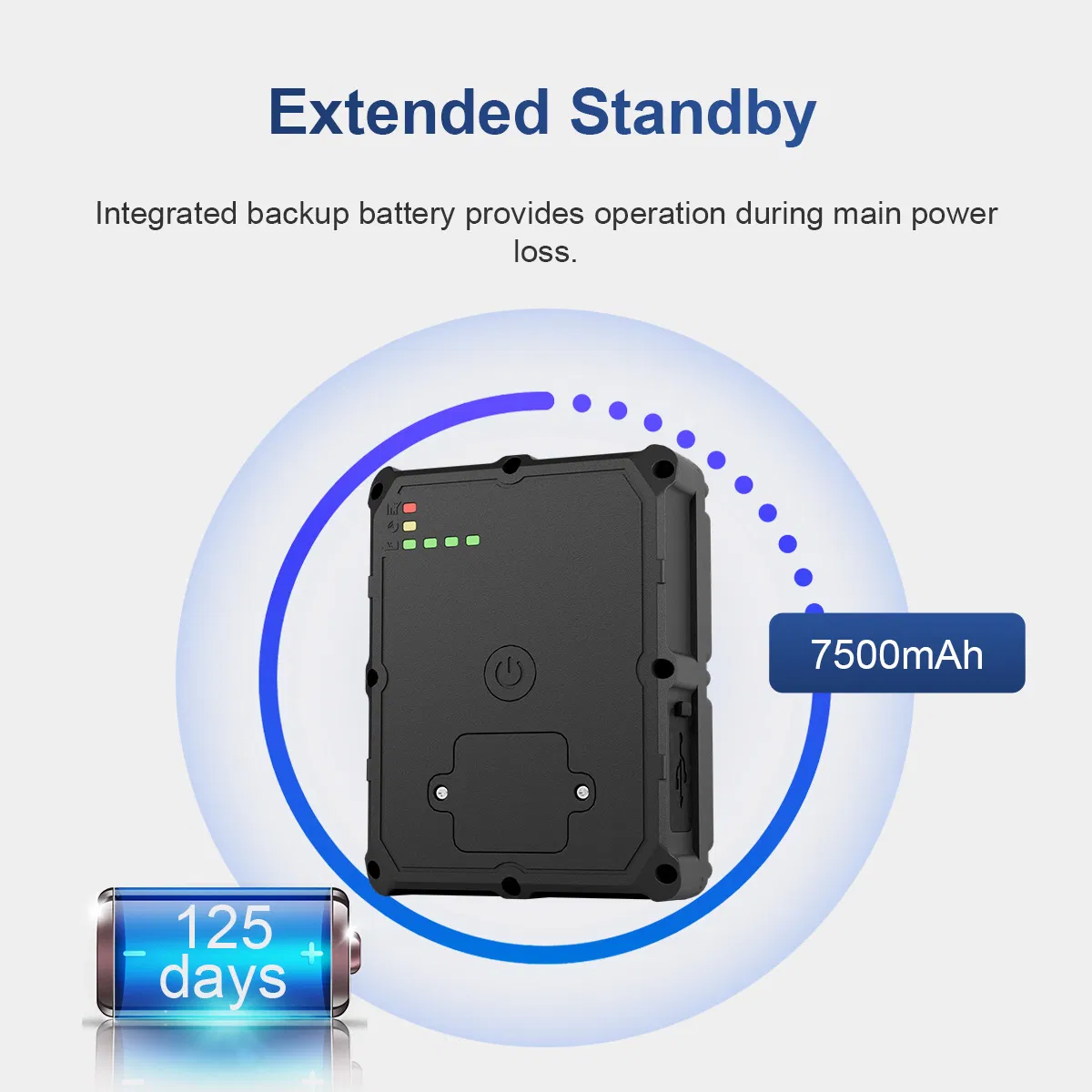

Battery	7500mA/3.7V Lithium Battery
Charging	DC5V/2A, Type-C Interface
Waterproof	IP67 Rating
Installation	Strong Magnetic Suction Installation
Anti-Theft	Optical Sensing Detection (Anti Disassembly)
Dimensions	L95W72H35MM

⚙️ Technical Highlights

Innovative Design & Protection

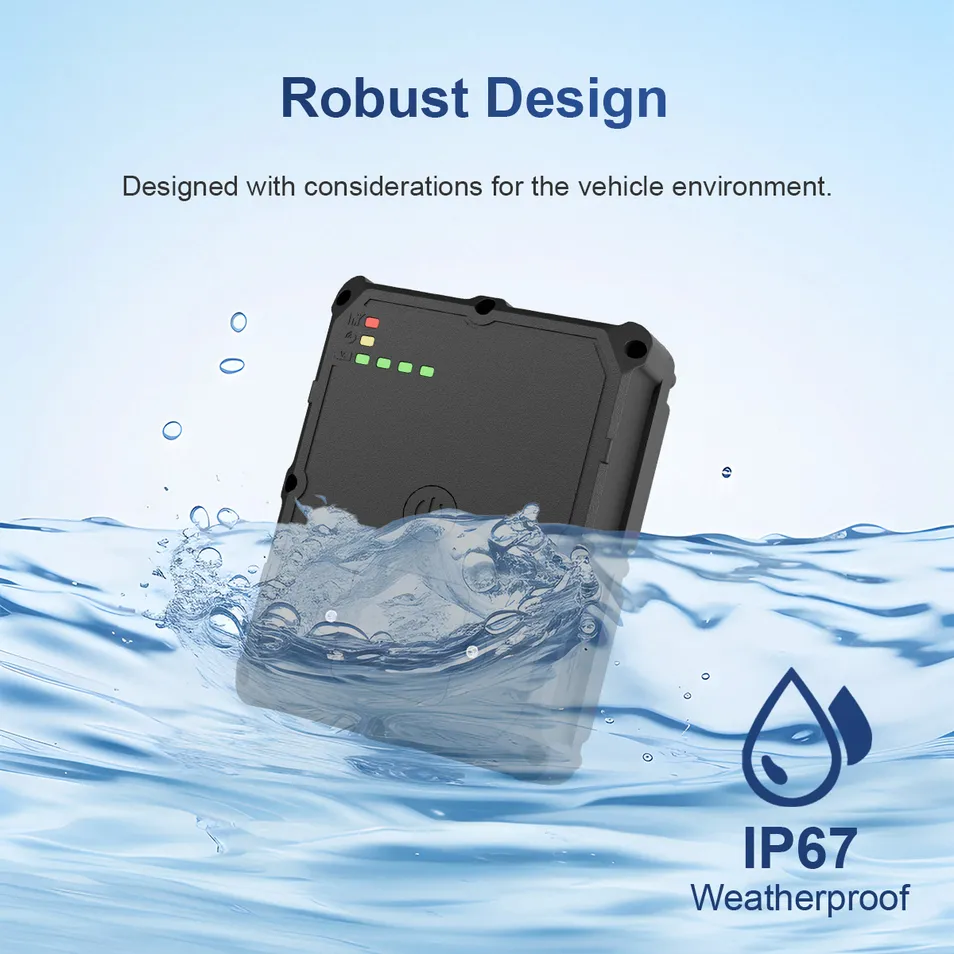

Benefits of IP67 Waterproof Rating:

Prolong Device Lifespan by preventing water ingress.
Enhance Reliability in humid environments.
Suitable for rainy days, wetlands, and oceans.
Reduce Maintenance Costs from water damage.
Normally functions even if dropped into water.

📊 Technical Specifications

GSM Specification
Communication Module	BC78
Data Transfer Speed	LTE: Max 10Mbps (DL) / Max 5Mbps (UL)
Protocol	TCP / IP
Antenna	Built-in Design
GPS Specification
GPS Chipset	HD8125

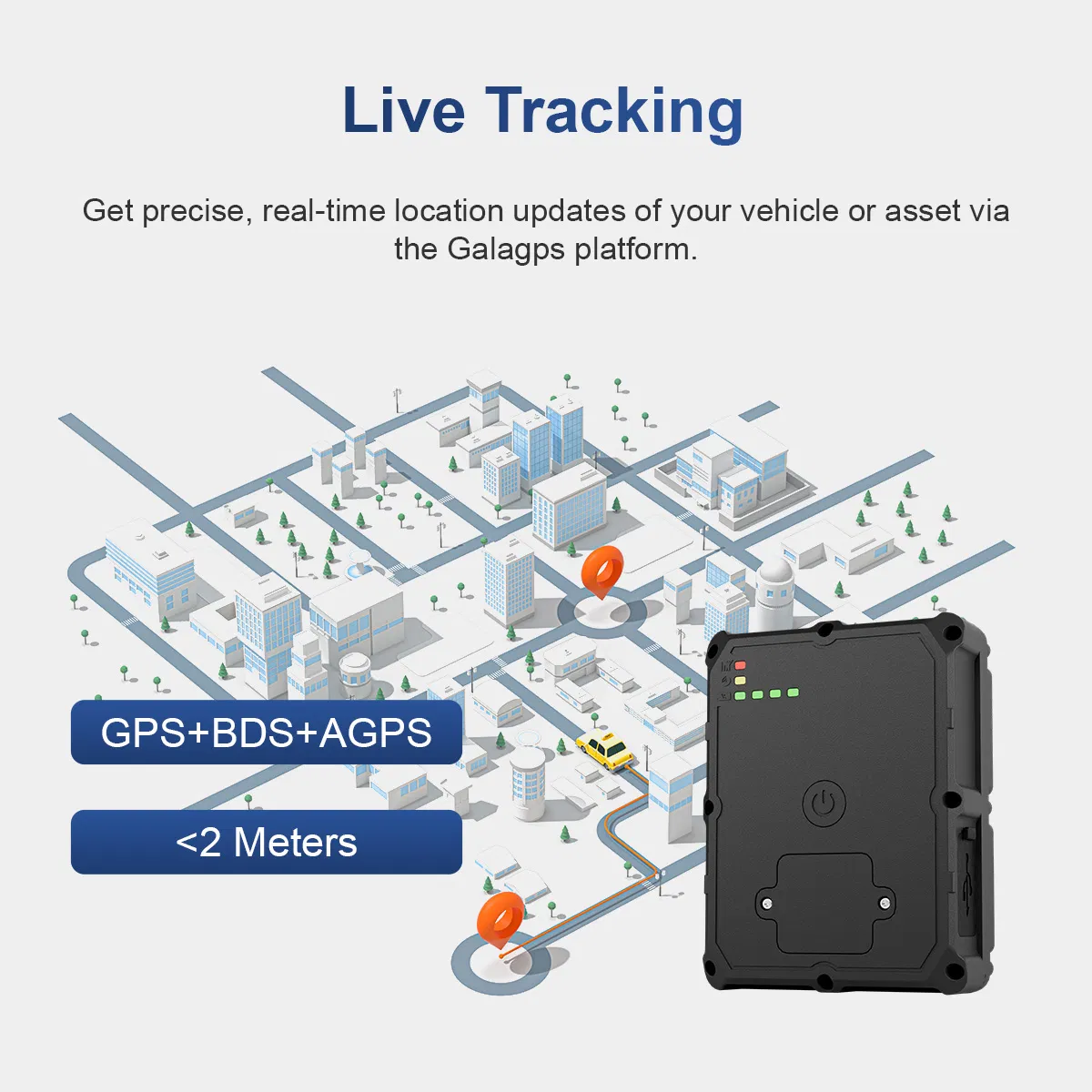

Satellite Systems	GPS, GLONASS, GALILEO, BEIDOU, QZSS, SBAS, AGPS
Tracking Sensitivity	-160dBm
Positioning Time	Hot start: <1s; Cold start: <28s (AGPS)

🛠️ Features & OEM Services

Core Functions:

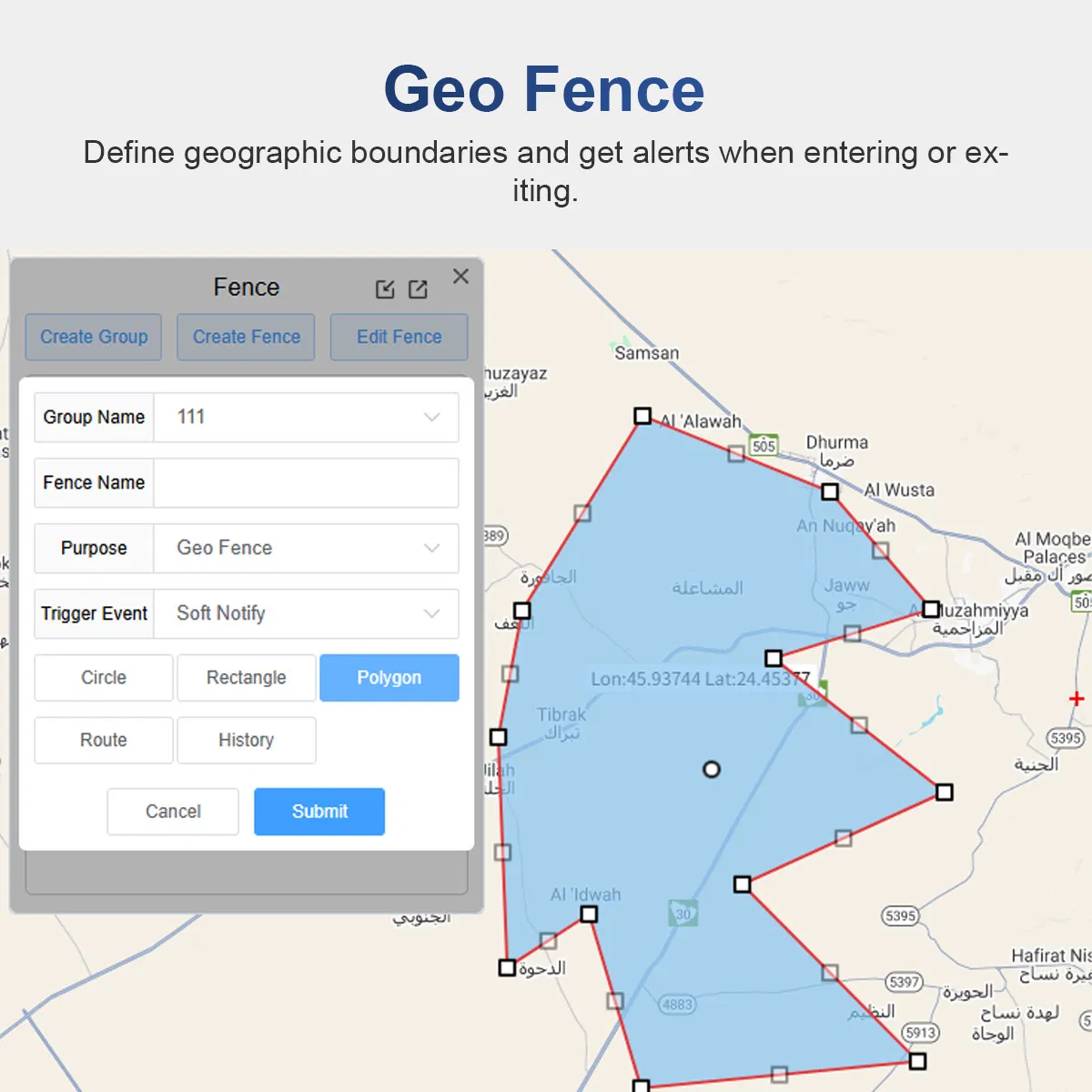

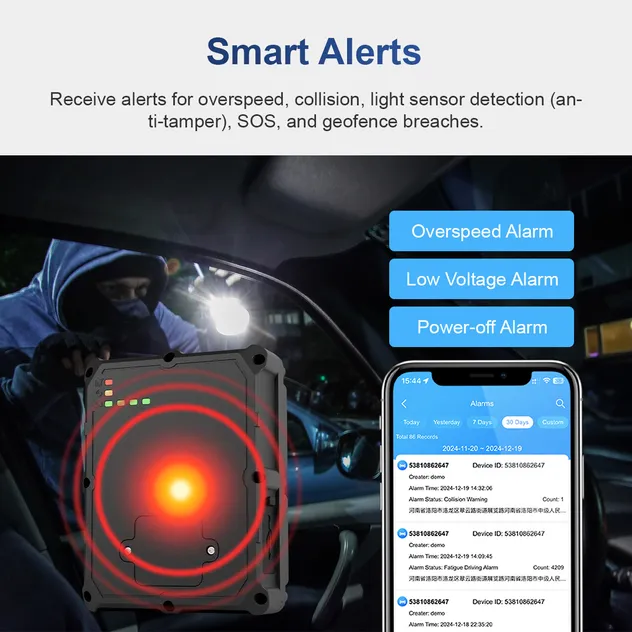

Multiple Alarms: Light Sensor/Collision/Geo Fence
3 Working Modes: Standby/Tracking/Normal
Strong Magnetic & Free Installation
Type-C Rechargeable Interface
SOS Panic Button

OEM Services:

Custom Product Function On Platform
OEM/ODM Product (Logo/Color/Hardware)
Custom Platform APP & SIM IOT Card

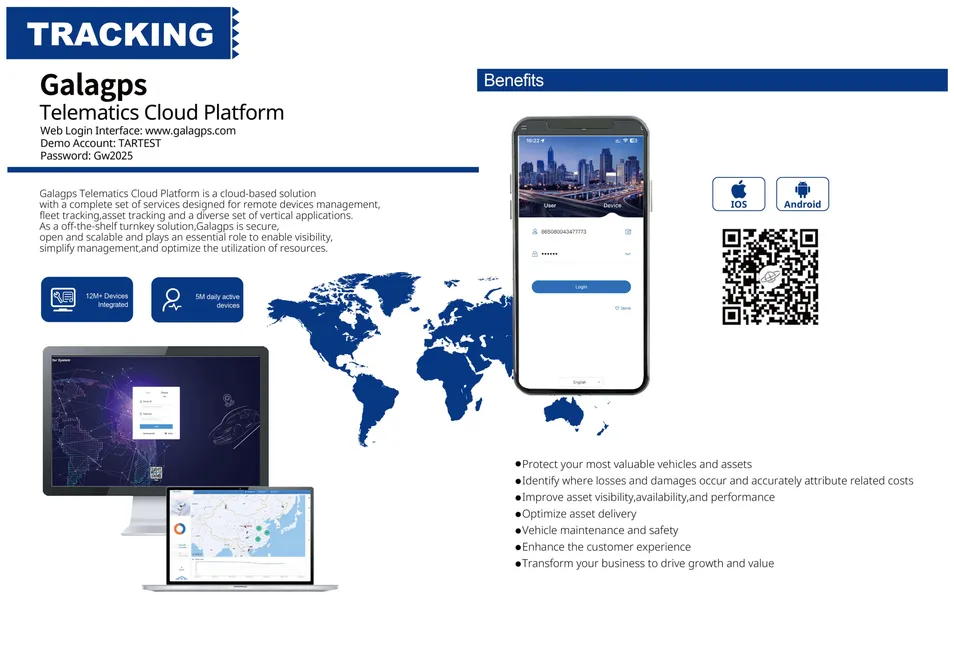

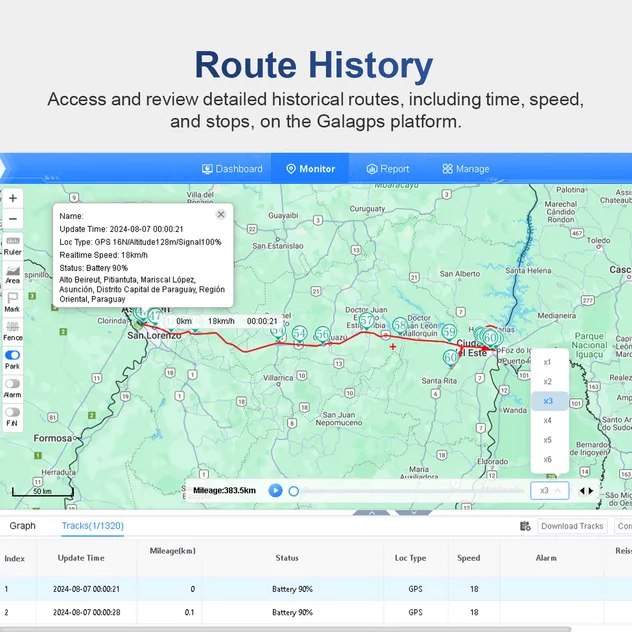

📱 Platform Display

Personal Cars Logistics Trucks Moto Buses Vans

🏭 Manufacturing Profile

Dedicated to innovative GPS trackers and dashcams since 2007. Our facility maintains a production capacity of 20,000 units per day, providing an all-in-one solution including hardware, software, and IOT card integration.

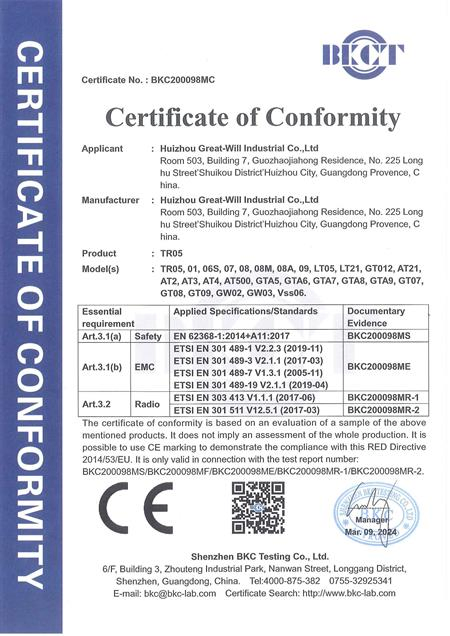

📜 Certifications

❓ FAQ

Q: What is the protection level of this device? A: The device features an IP67 rating, offering high resistance to dust and water, allowing it to work normally in harsh environmental conditions.

Q: How long does it take to fully charge the battery? A: Using a 5V/2A charger, the built-in 7500mAh battery can be fully charged from a shut-down state in approximately 5 hours.

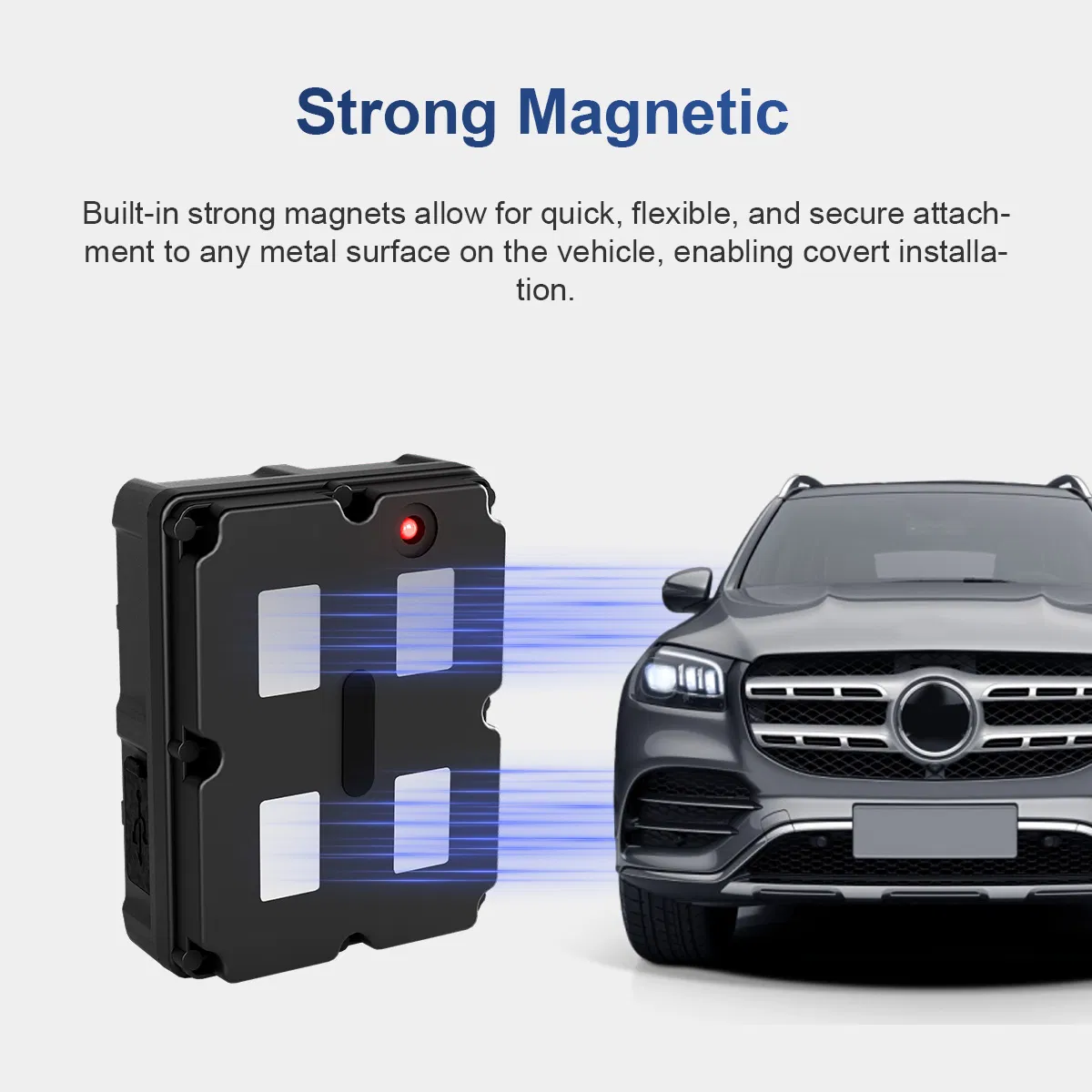

Q: How is the GPS tracker installed on a vehicle? A: It features a non-installation design using strong magnetic suction on the back, allowing it to be easily attached to metal surfaces of assets or vehicles.

Q: What kind of alerts does the device provide? A: The device supports multiple alarms including light sensor (anti-disassembly), collision detection, and Geo-fence alerts.

Q: What satellite systems does the tracker support? A: It is compatible with multiple global systems including GPS, GLONASS, GALILEO, BEIDOU, QZSS, SBAS, and AGPS for high-accuracy positioning.

Q: What are the different working modes? A: The tracker has three configurable working modes: Standby mode, Tracking mode, and Normal mode to balance performance and battery life.

Product Detail

Wireless Tracker GPS GSM Bds Positioning Ways Anti Theft Real Time Tracking Mini Asset GPS Tracker Satellite Tracking Device for Cars

Product Description
