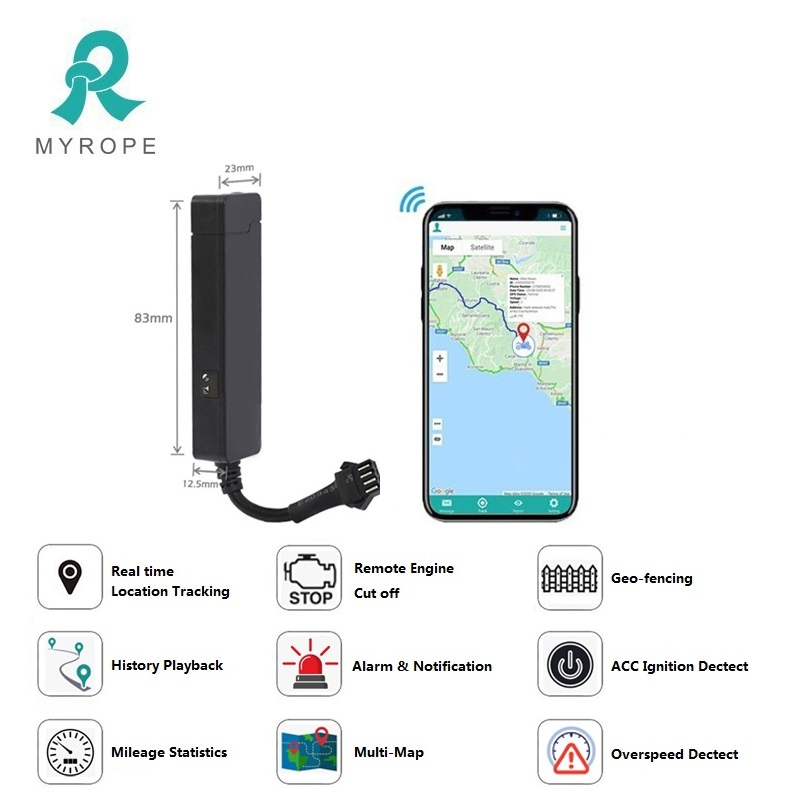

Car Tracker Real Time Location Electric Vehicle GPS Tracker /GSM Tracking Device

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Warranty
1 Year
GSM Frequency
850/900/1800/1900MHz
GSM Chipset
Quectel M26
Lbs Accuracy
100-500m
GPS Sensitivity
-159 dBm
GPS Frequency
L1, 1575.42 MHz
Channels
20 Channels
GPS Accuracy
5-10m, 2D RMS
Working Voltage
8VDC-100VDC
Working Current
50mA-160mA
APP Name
Icruise S
Map Support
Google Map
Battery
110mAh Lithium Polymer
Dimensions
55mm*28mm*12mm

Product Overview

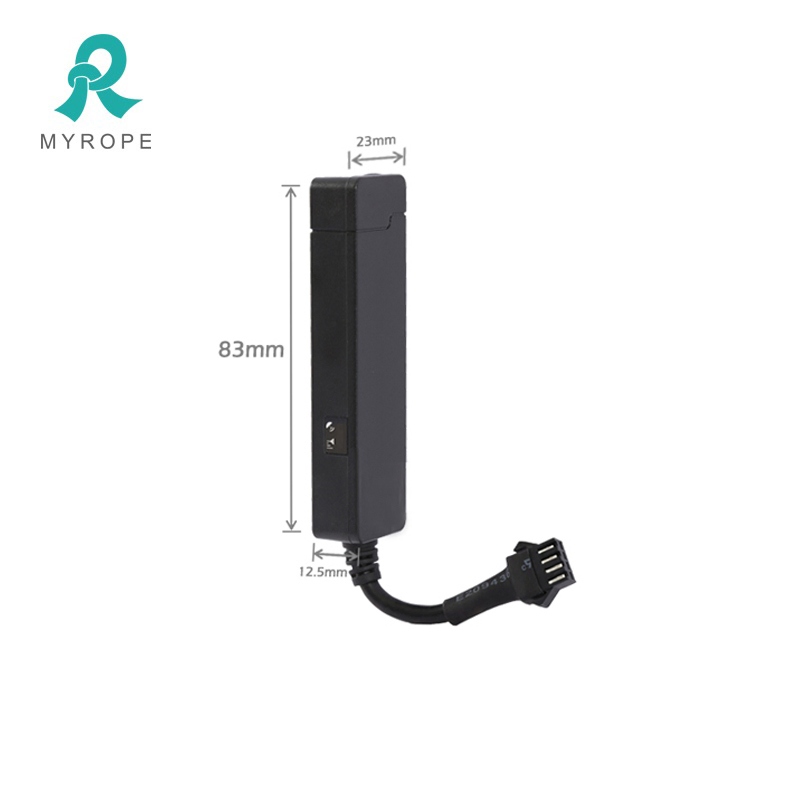

M558G-V2 is a super mini size anti-theft GPS tracking device specialized designed for motor/E-bike with stable quality. Its size is as small as a lighter, making it easy to hide for maximum security.

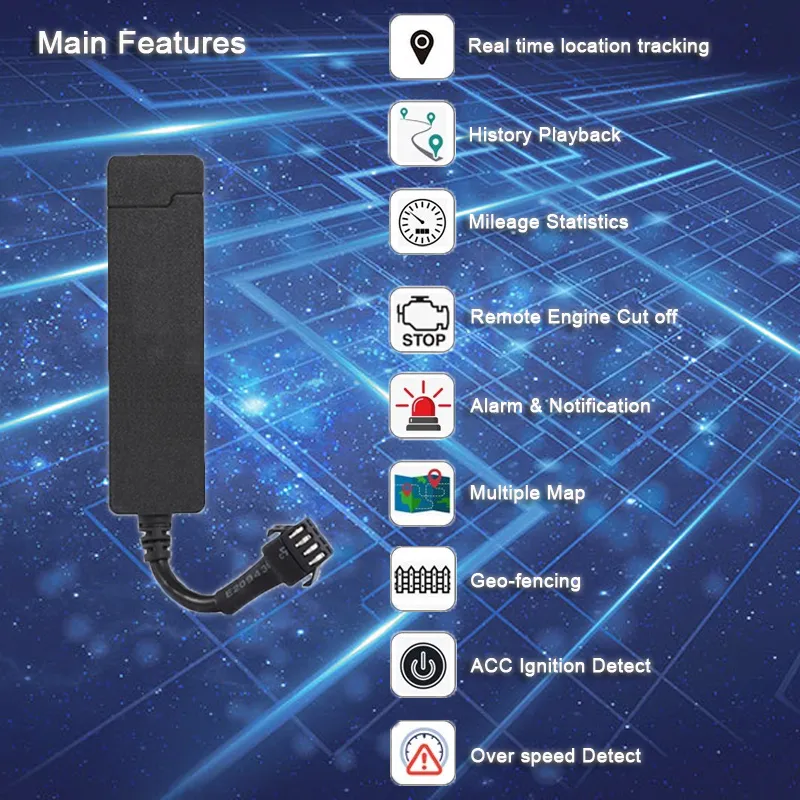

GPS Tracker Mini Size
Tracking Device Display

Main Functions

  • Ultra-small size for covert installation
  • Built-in high sensitivity antenna
  • Track via SMS or GPRS real-time
  • Remote fuel/power cut-off via App/Web
  • Data re-transmission from signal dead zones
  • Overspeed and Geo-fence alarms
  • Historical route playback
  • Mileage statistics and reports
  • Low power and parking alarms

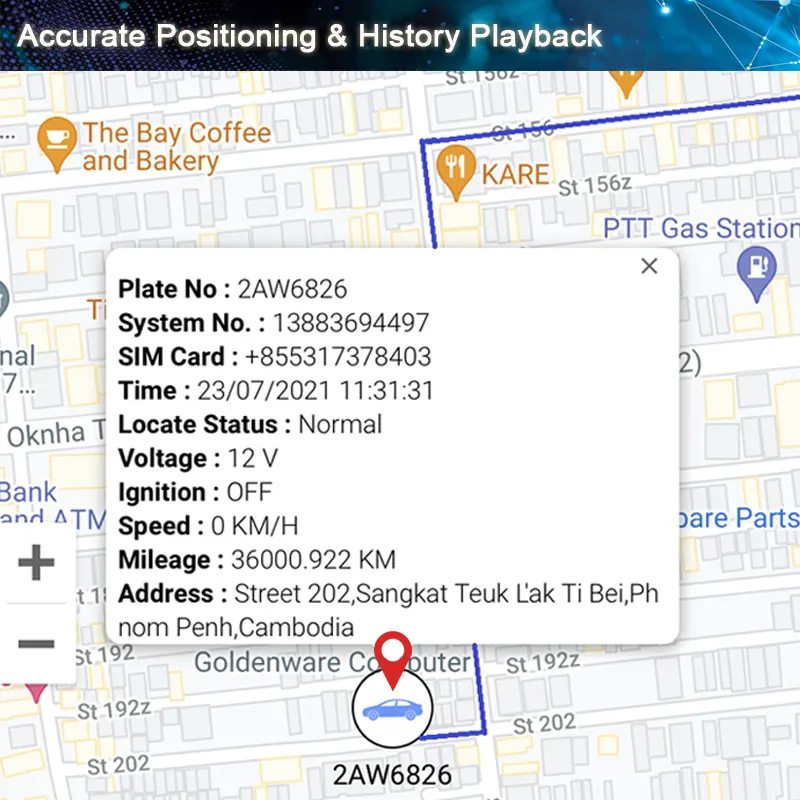

Function Diagram 1

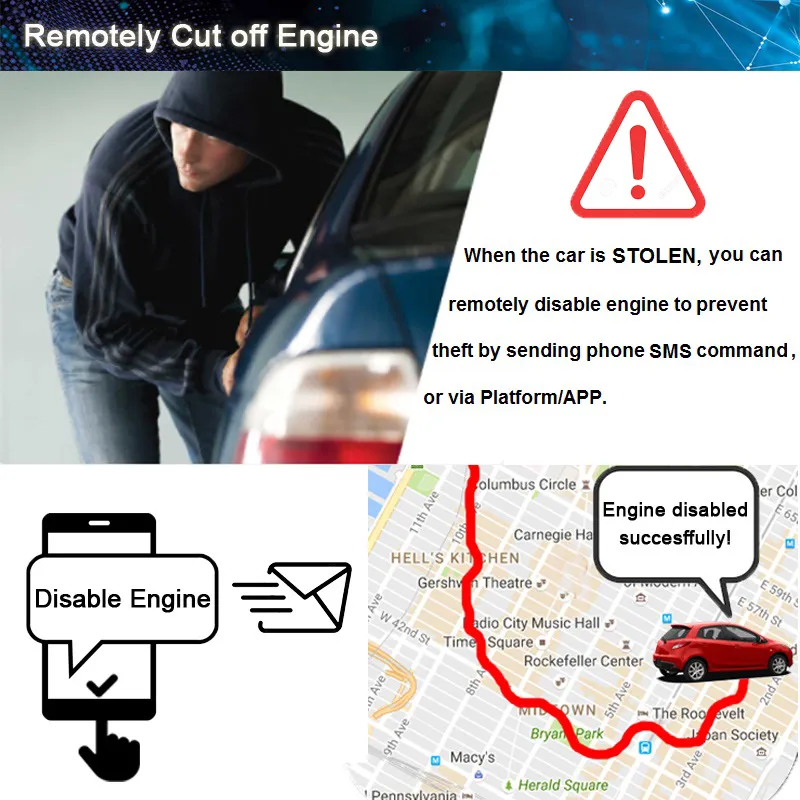

Function Diagram 2

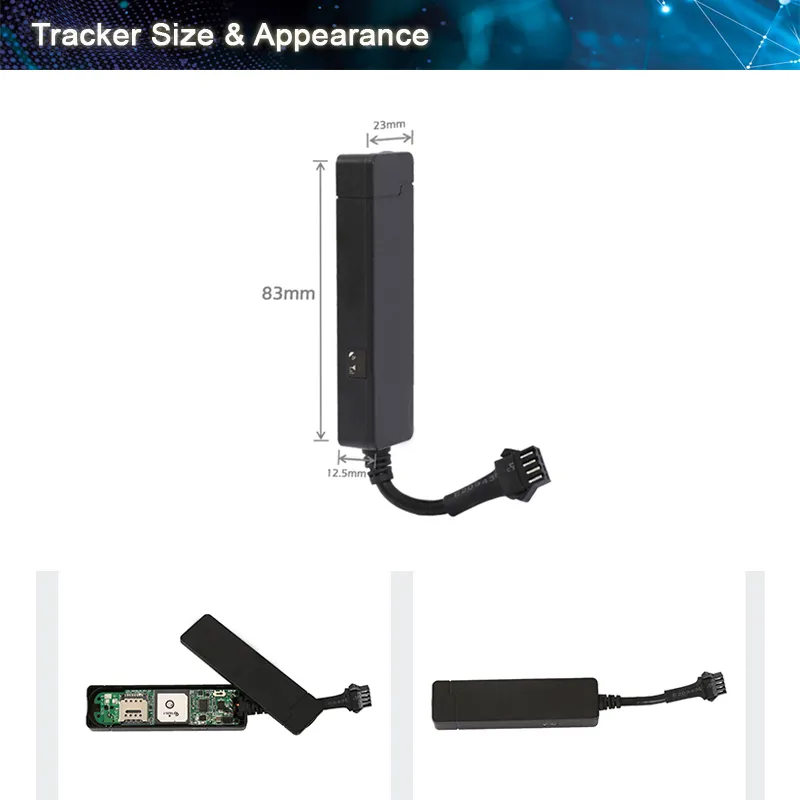

Function Diagram 3

Technical Parameters

Items Parameters
GSM ModuleQuectel M26
GSM Frequency850/900/1800/1900 MHZ
LBS Accuracy100-500m
GPS Accuracy5-10m
Working Voltage9VDC - 90VDC
Working Current50mA - 160mA
Operating Temp-20ºC to 70ºC
Size75mm × 23mm × 12mm
Backup Battery50mAh (Standby > 30 mins)

Web Platform & Mobile APP

We provide a comprehensive web platform and mobile application. Hosted on cloud cluster servers, the system ensures:

  • Support for unlimited quantity of devices
  • High reliability with backup servers
  • Fast response times worldwide
  • Customized reports and management functions

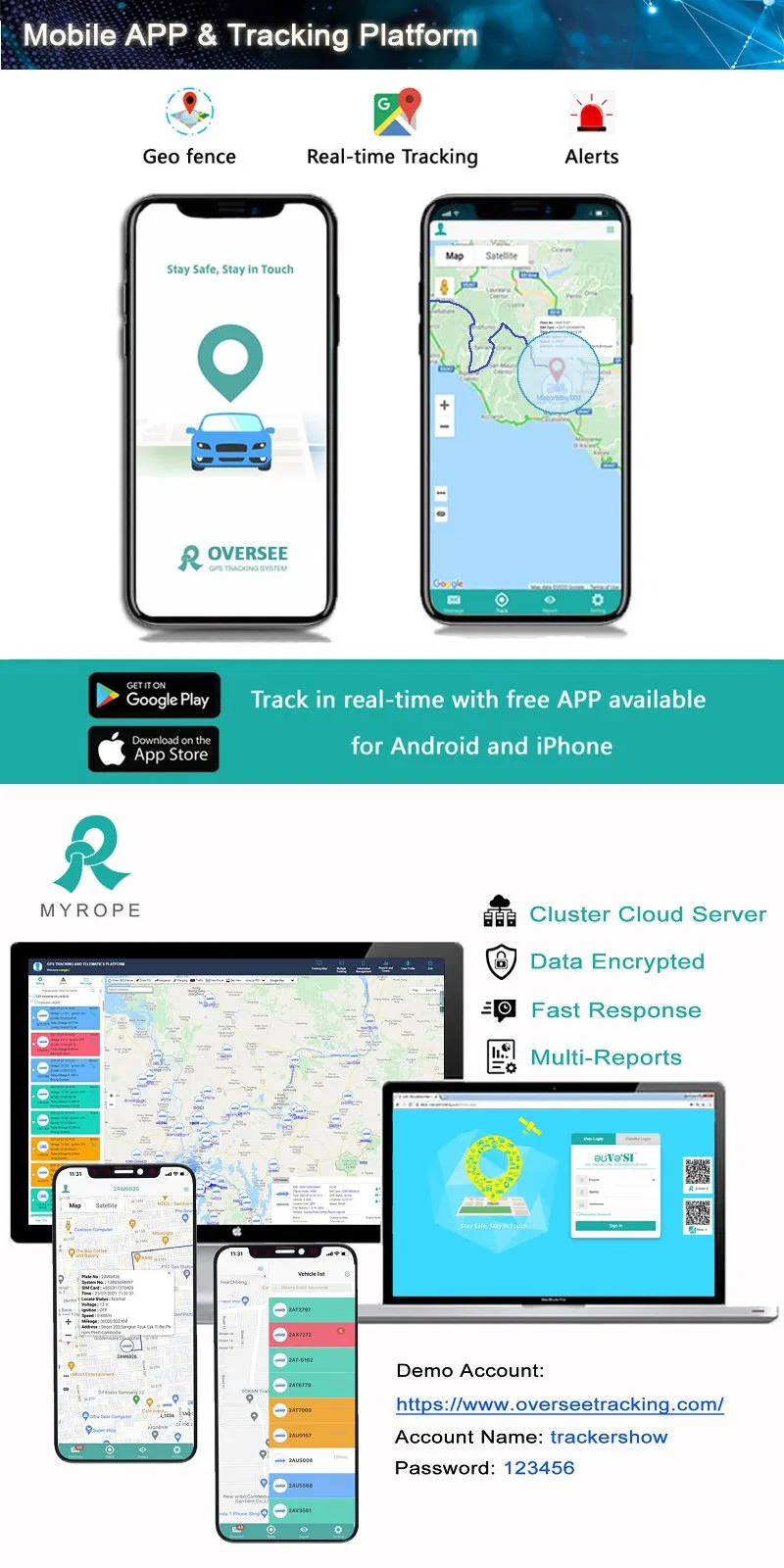

App Interface
Web Platform

Quality Assurance

As a direct manufacturer with over 10 years of experience, we operate a large manufacturing base including molding, SMT, and full production lines. All products undergo 100% QC before delivery.

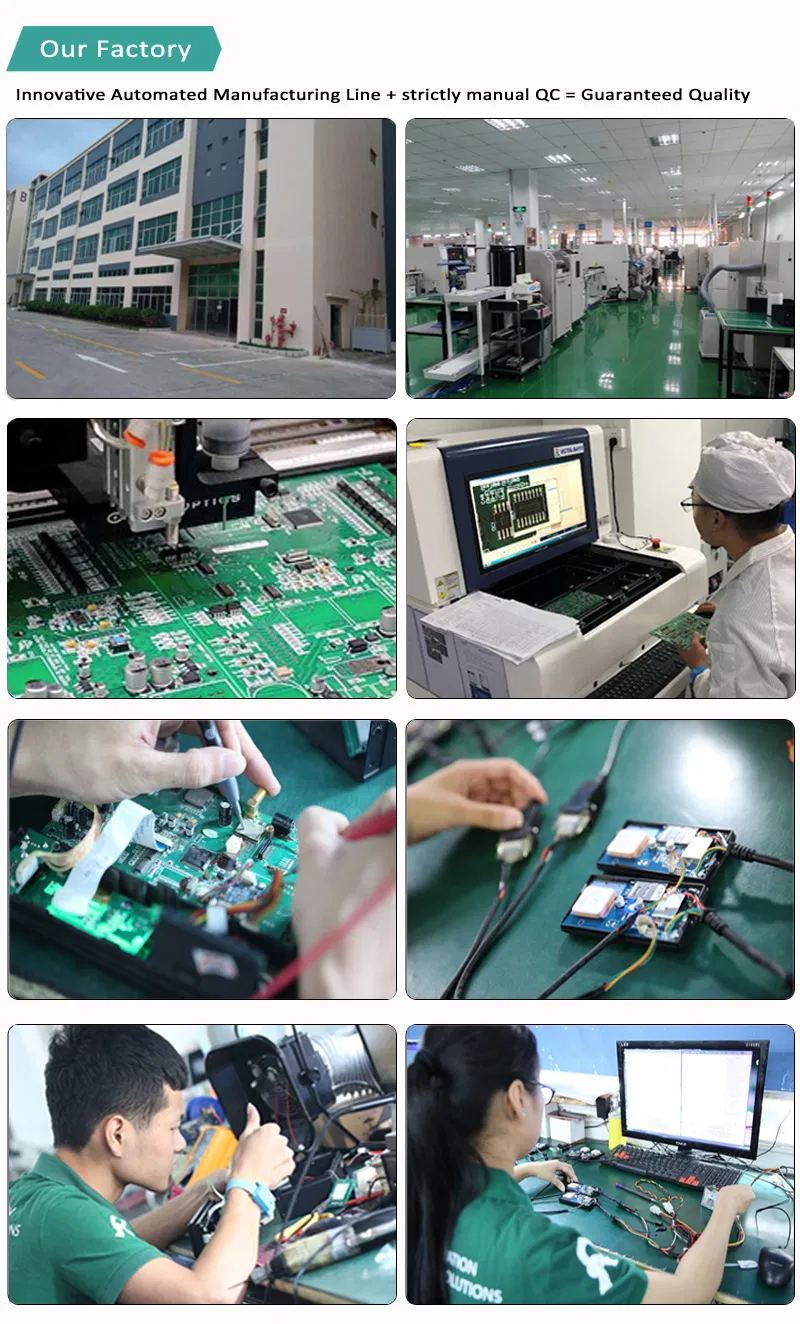

Factory SMT Line
Testing Equipment
Production Process

Certificates

Our facility and products are fully certified to meet international standards for safety and quality.

CE ROHS FCC Certificates
QC Control

Frequently Asked Questions

Are you a direct manufacturer?
Yes, we are a professional manufacturer of GPS trackers with over 10 years of industry experience.
Does the device come with a tracking platform?
Yes, we provide both a web-based platform and a mobile application for Android and iOS devices.
What is the warranty period for the trackers?
We provide a full one-year warranty for all our hardware products.
Do your products have international certifications?
Yes, our factory is ISO9001 certified, and our products have passed CE, ROHS, and FCC requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity is 1 piece, making it easy for testing and small-scale deployment.
Which payment methods do you accept?
We accept T/T Bank transfer, PayPal, Western Union, and Credit Card payments.
