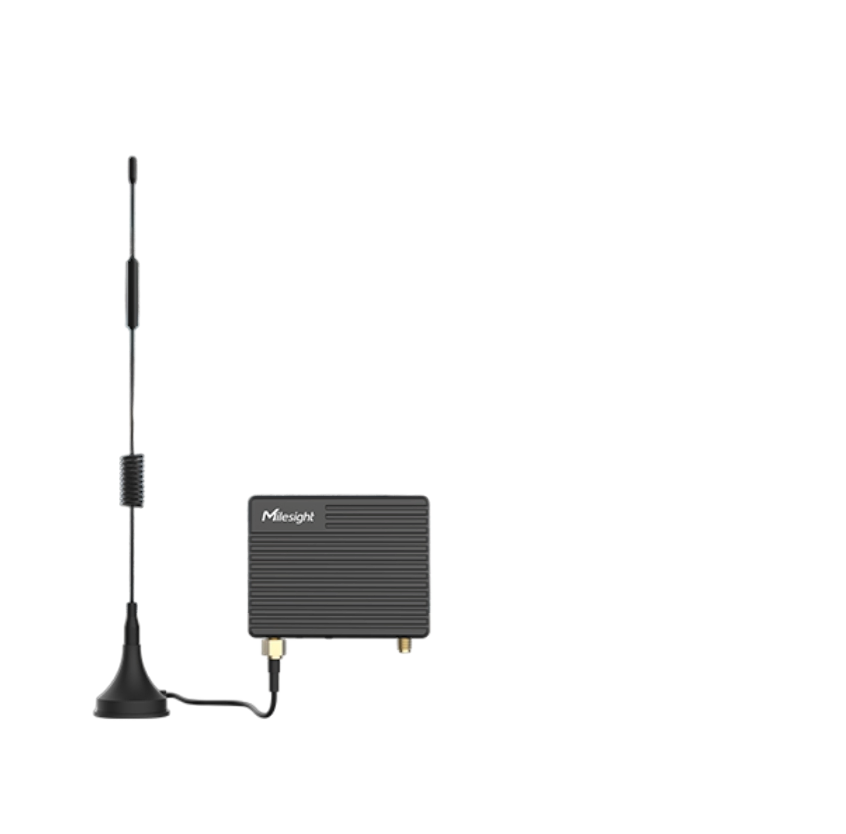

Milesight 4G LTE Industrial IoT Router Modem with WiFi and GPS Connectivity

Basic Information

Model

UR41L

Transfer Rate

10/100Mbps

Firewall

Supported

Application

Industrial Grade Router

CPU

Arm Cortex-A7, 528 MHz

Memory

128 MB DDR3 RAM / 128MB Flash

SIM Slots

2 × SIM Slot (Mini SIM-2FF)

Ethernet

2 × RJ45 10/100 Mbps

Wi-Fi

IEEE 802.11 B/G/N, 2.4GHz

GNSS

GPS/Glonass/Bds/Galileo/Qzss

Dimensions

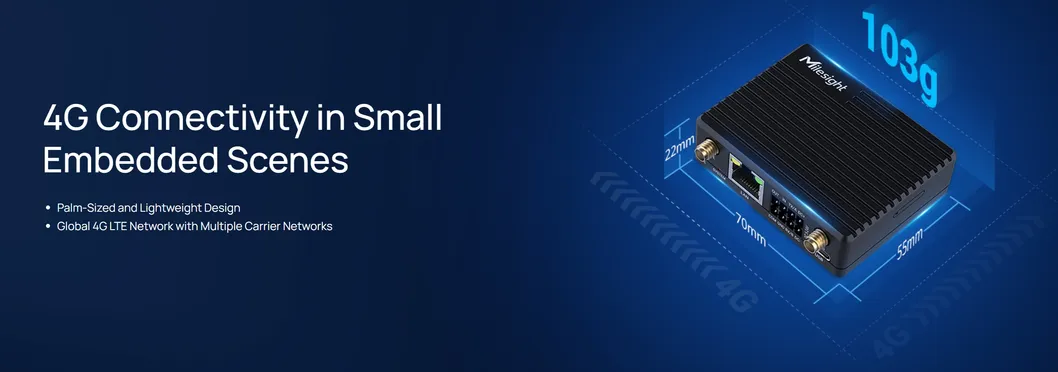

70 x 55 x 22 mm

Origin

China

Product Description

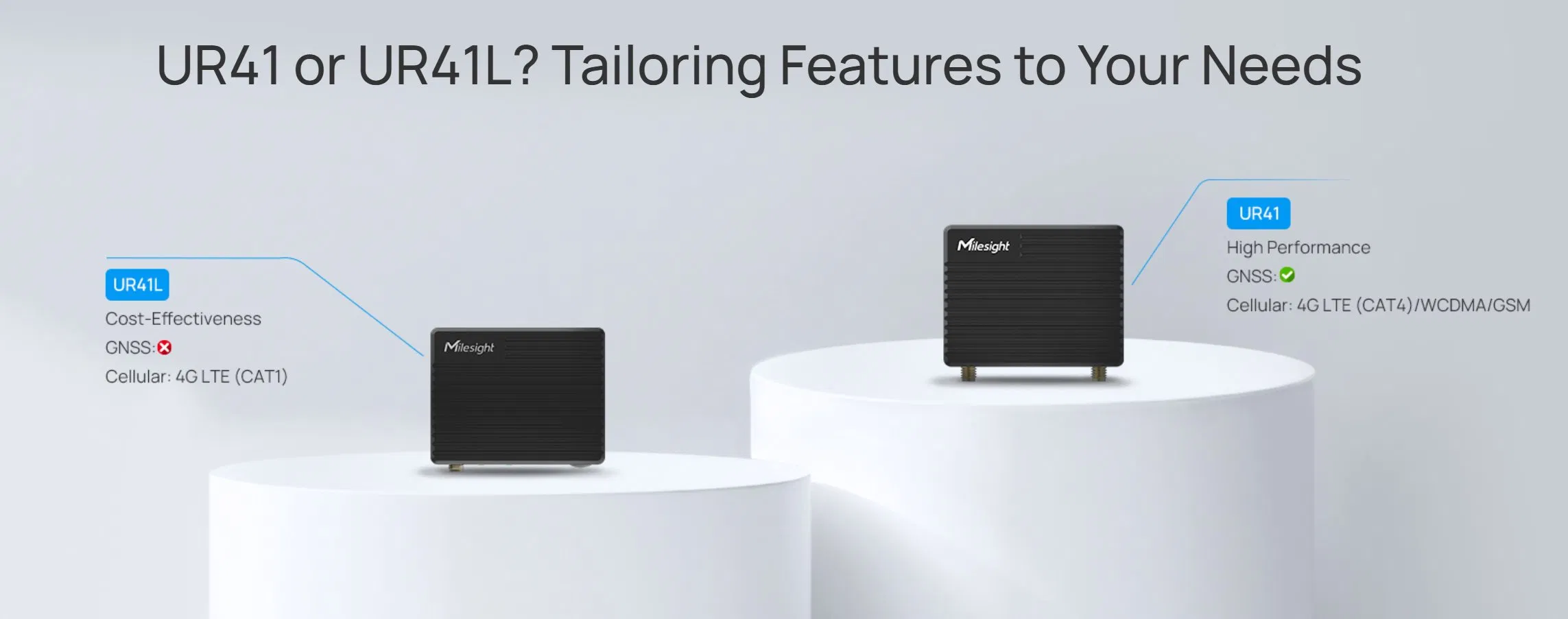

Mini Series Industrial Cellular Router UR41 & UR41L
Pocket-Sized Industrial Grade Connectivity Solution

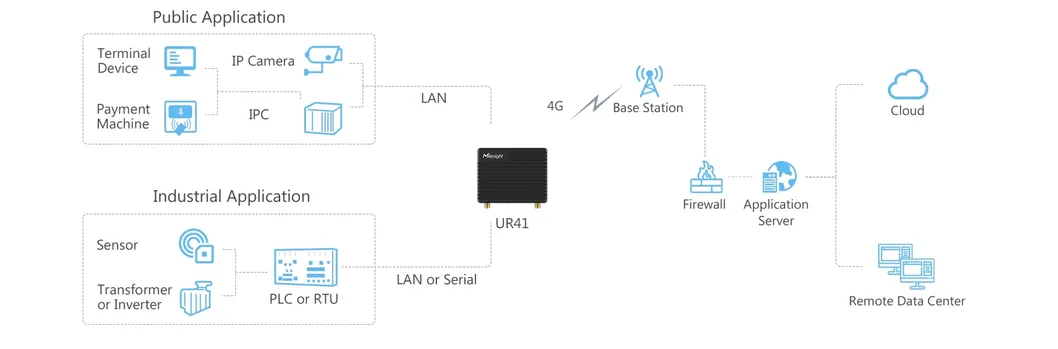

UR41(L) supports 4G connection and satisfies multi-type local data access requirements through rich industrial interfaces, including DI, DO, RS232, or RS485. It features a built-in watchdog and secure VPN tunnels, realizing stable data transmission and high-speed mobile connectivity. With a compact size and industry-grade design, UR41(L) is flexible for a variety of installation scenarios and includes power-saving idle and standby modes.

Software Specifications

Category	Features & Protocols
Network Protocols	IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, MQTT, TR069
Routing	Static Routing, RIP, OSPF
Reliability	VRRP, WAN Failover, Dual SIM Backup
Wi-Fi Interface	AP or Client mode, WEP/WPA/WPA2 authentication, Up to 15 connections
Security	Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS & DDoS Protection, Filtering (IP & Domain)
GNSS	NMEA0183, PMTK; Supports Serial Port, MQTT, TCP, UDP reading

Detailed Photos

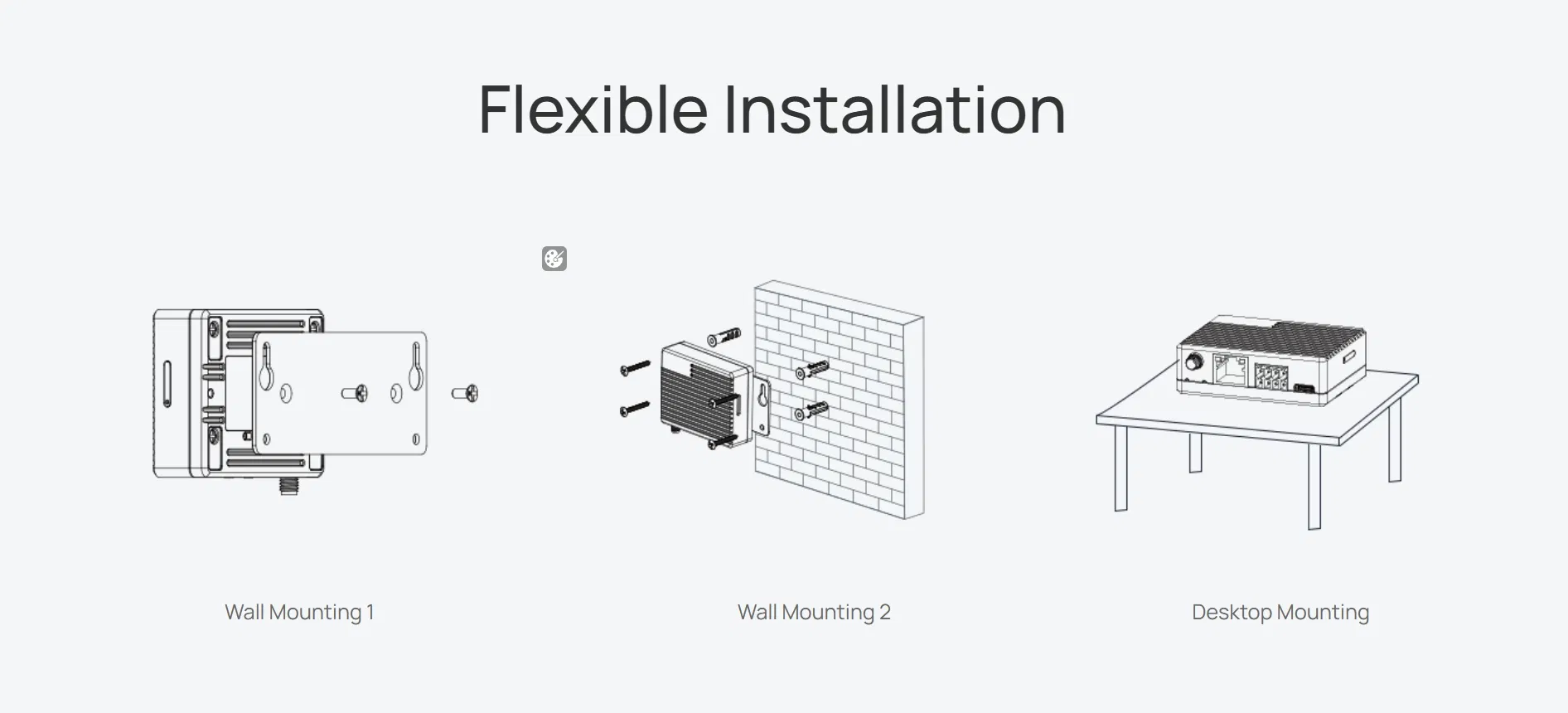

Installation Instructions

About the Manufacturer

Our manufacturing partner offers multi-potential sensing products to capture meaningful data across diverse applications. By innovatively applying emerging technologies such as AI, 5G, and IoT, the provider delivers unique data value to customers worldwide. The focus remains on creating positive impacts in smart buildings, intelligent traffic, and smart cities.

Advanced Technology: Over half of the staff are R&D engineers, with significant annual investment in innovation.
Strict Quality Control: ISO9001 authorized with products certified by CE, FCC, RoHS, and RCM.
Global Presence: Services provided over 120+ countries and regions across retail, government, and industrial sectors.

Frequently Asked Questions

What are the primary connection options for the UR41 series?

The UR41 series supports 4G LTE cellular connectivity and provides various industrial interfaces such as DI, DO, RS232, or RS485 for local data access.

Is this router suitable for compact installations?

Yes, it is a pocket-sized industrial grade router measuring only 70 x 55 x 22 mm, making it ideal for vending machines, robots, and small industrial cabinets.

Does the device support satellite positioning?

Yes, it features optional GNSS technology supporting GPS, Glonass, Bds, Galileo, and Qzss with a high accuracy of 2.5m CEP in open air.

How does the router ensure stable data transmission?

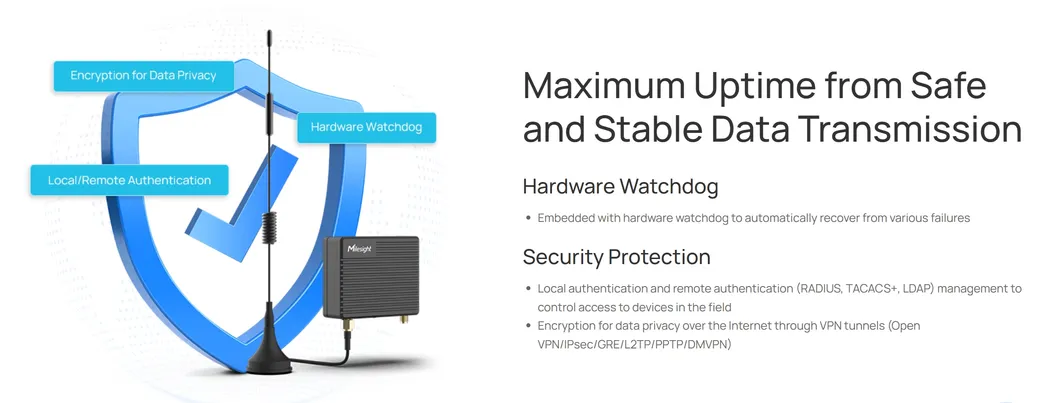

The router includes a built-in hardware watchdog for automatic recovery and supports secure VPN tunnels to ensure reliable and protected data transfer.

What is the power consumption design of the UR41 series?

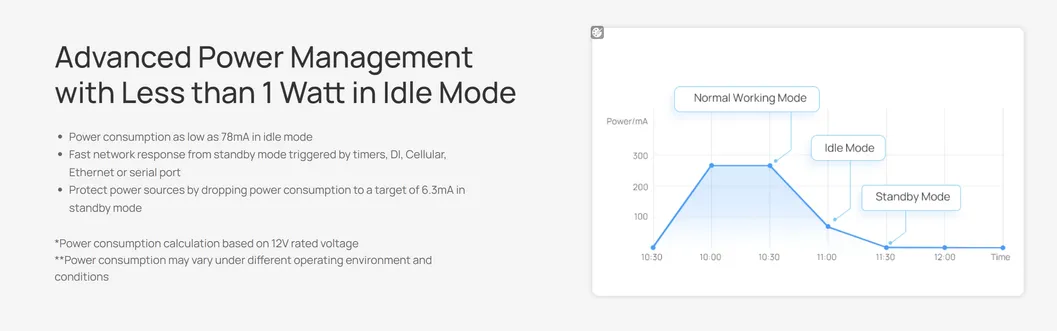

It adopts an energy-saving design that includes both idle mode and standby mode, providing users with efficient power management options for IoT applications.

Can the router be managed remotely?

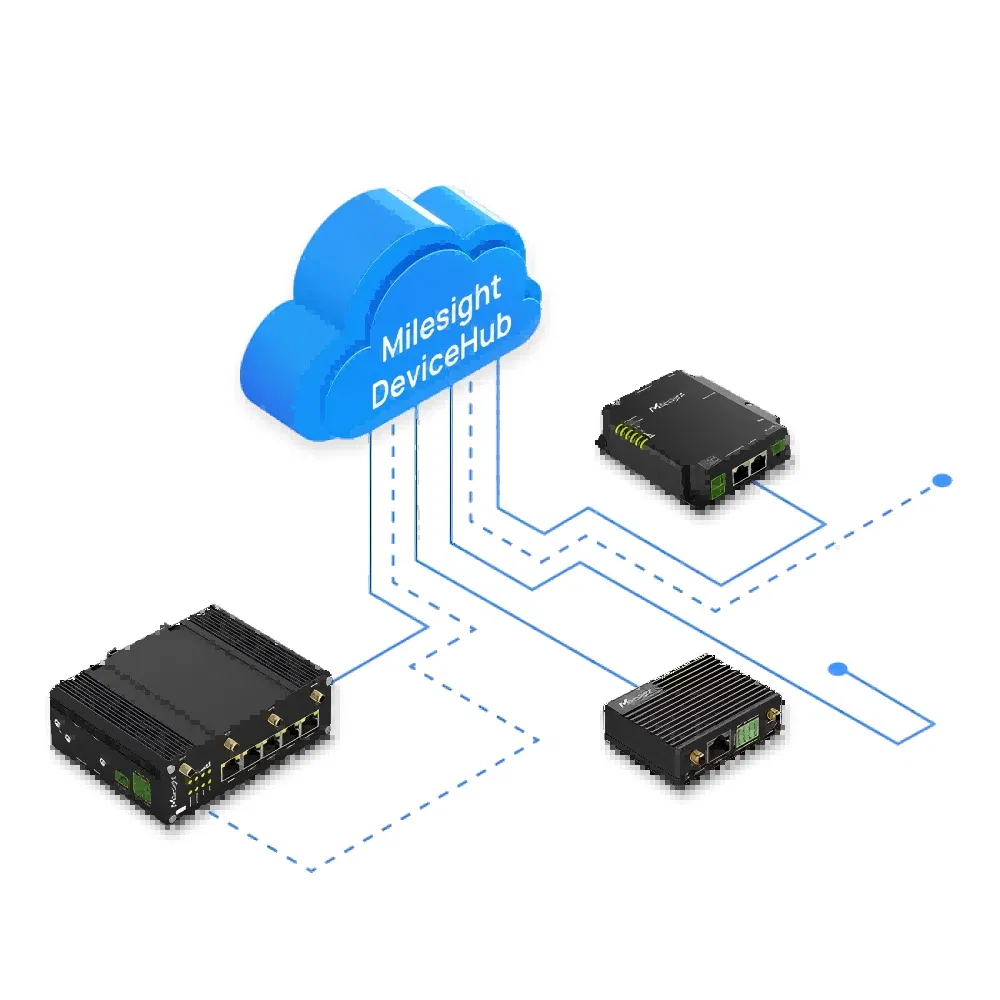

Absolutely. The device can be managed and monitored remotely via a central management platform, allowing for easy maintenance and configuration updates.
